• 3 differential input channels
• On-board temperature sensor
• Noise as low as 1 μV p-p
• On-board shunt calibration for strain gages
• Factory installed bridge completion available
• IP-68 weatherproof enclosure
• AMPSEAL connector
• -40 to +85°C operating temperature
• M8 mounting with compression limiters
LORD Sensing Wireless Sensor Networks enable simultaneous, high-speed sensing and data aggregation from scalable sensor networks. Our wireless sensing systems are ideal for test and measurement, remote monitoring, system performance analysis, and embedded applications.
Users can easily program nodes for continuous, periodic burst, or event-triggered sampling with the SensorConnect software. The optional web-based SensorCloud®interface optimizes data aggregation, analysis, presentation, and alerts for sensor data from remote networks.

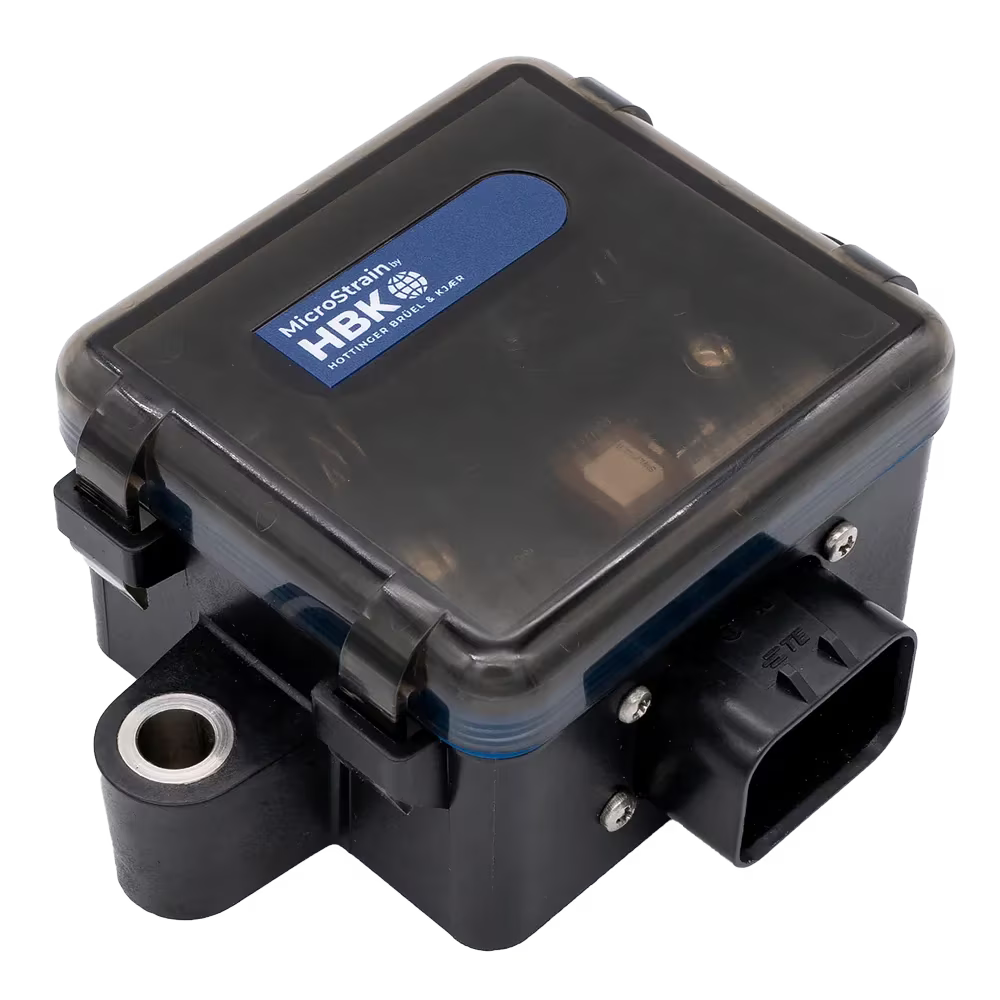

The SG-Link-200 is a 3-channel wireless sensor with a rugged, weatherproof enclosure. It includes onboard PGA, filtering, and a high-resolution ADC for precise measurement of a large range of sensor types including strain gages, load cells, pressure transducers, and accelerometers.
Lord wireless sensor networks are fast to deploy and provide reliable, lossless data throughput. These networks are proven to work in demanding industries where reliable data acquisition is critical.
