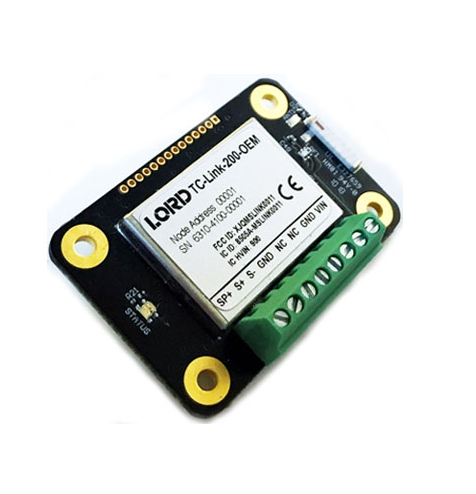

TC-Link 200 OEM, Wireless Temperature Sensor Node

Description

• General information

  The TC-Link^®-200-OEM allows users to collect data from a range of sensor types including Thermocouples, Resistance Thermometers, and Thermistors. The node supports high resolution, low noise data collection from 1 temperature transducer at sample rates up to 128 Hz. Users can easily program nodes for continuous, periodic burst, or event-triggered sampling with the SensorConnect software. The optional web-based SensorCloud^® interface optimizes data aggregation, analysis, presentation, and alerts for sensor data from remote networks.

• Specifications

  General
  Sensor input channels	Thermocouple, RTD, or Thermistor input, 1 channel
  Integrated sensors	Temperature CJC, 1 channel
  Digital filter	Adjustable low pass filter with 3db frequency as low as 2.3 Hz and up to 120 db 50/60 Hz rejection
  Thermocouple Input
  Measurement range	-210° C to 1820° C (depending on thermocouple type)
  Accuracy	±0.5° C (20 to 70° C node temperature) ±1° C (-40 to 85° C node temperature)
  Resolution	0.1° C
  Compatible types	J, K, N, R, S, T, E and B
  RTD Input
  Measurement range	-200° C to 850° C
  Accuracy	±0.5° C (depending on RTD accuracy)
  Resolution	0.01 ° C
  Compatible types	PT-10, PT-50, PT-100, PT-200, PT-500, PT-1000
  Thermistor Input
  Measurement range	-40° C to 150 °C (depending on Thermistor type)
  Accuracy	±0.2° C (depending on Thermistor accuracy)
  Resolution	0.02° C
  Compatible types	44004, 44033, 44005, 44030, 44006, 44031, 44007, 44034, 44008, 44032, YSI-400
  Integrated Temperature Cold Junction Compensation (CJC) Channel
  Compensation range	-40 °C to 85 °C (0 °C to 85 °C for type B Thermocouples)
  Accuracy	±0.13 °C (20 °C to 70 °C), ±0.25 °C (-40 °C to 85 °C)
  Resolution	0.02 °C
  Sampling
  Sampling modes	Continuous, periodic burst, event triggered
  Output options	Temperature, mV, Resistance or custom
  Sampling rates	1 channel: up to 128 Hz
  Sample rate stability	±5 ppm
  Network capacity	Up to 128 nodes per RF channel (bandwidth calculator:)www.microstrain.com/configure-your-system
  Node synchronization	±50 µsec
  Data storage capacity	16 M Bytes (up to 8,000,000 data points)
  Operating Parameters
  Wireless communication range	Outdoor/line-of-sight: 2 km (ideal), 800 m (typical)Onboard antenna: 1 km (ideal), 400 (typical) Indoor/obstructions: 50 m (typical)
  Radio frequency (RF) transceiver carrier	License-free 2.405 to 2.480 GHz (16 channels)
  RF transmit power	User-set 0 dBm to 20 dBm. restricted regionally
  Operating temperature	-40 °C to +105 °C
  ESD	4 kV
  Physical Specifications
  Dimensions	41.3 mm  x  29 mm  x  5.9 mm
  Interface	Solder or screw-down terminal available
  Weight	7 grams
  Integration
  Compatible gateways	All WSDA gateways
  Software	SensorCloud®, SensorConnect, Windows 7, 8 & 10 compatible
  Software development kit	http://www.microstrain.com/software/mscl
  Regulatory compliance	FCC (USA), IC (Canada), CE (European Union), JET (Japan)
