SST800 Dynamic Inclinometer

Description

• Product info

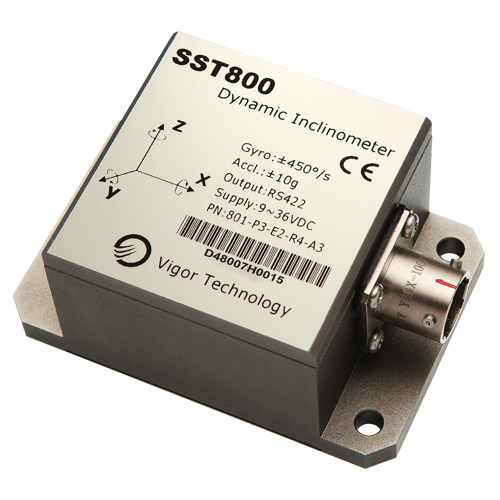

  SST800 dynamic inclinometer is specially designed for motion application, which is an inertial product measures dynamic roll/pitch angle with high update rate. SST800 has concentrated Vigor years of application experience and technology of tilt measurement, combines with military inertial navigation technology; highly increase the performances of traditional vertical gyro product, to achieve max. accuracy±0.05°.



  @ ±0.05°dynamic measurement accuracy, high performance-cost ratio
  @ Max. 1000Hz update rate, real-time data processing
  @ Free from acceleration interference
  @ No drift, keep high precision long time
  @ Not needs any external auxiliary
  @ Installed wherever needed
  @ Built in tri-axis accelerator and tri-axis gyro, MEMS/Servo/FOG optional
  @ Unique attitude algorithms
  @ Survival to transient power supply under vibration/shock environment
  @ Customized with heave, surge, sway data for vessel
  @ Customized with rollover prevention warning for vehicle/truck with ISO14793

  Traditional inclinometer based on accelerometer and electrolyte principles. In dynamic motion such as rapid movement vehicle and vessel, the measurement result will be affected by extra axial acceleration and centripetal acceleration, so that valid angle measurement data can’t identify effectively, and accuracy is unable to guarantee. SST800 adopts advanced inertial navigation technology to exactly measure dynamic pitch/roll angle long term, without aiding of GPS/compass etc..



• Size & Wiring











  Table2 Pin definition

  Pin	RS485		RS232		CAN		Ethernet
  1	Power+		Power+		Power+		Power+
  2	Power GND		Power GND		Power GND		Power GND
  3	Signal GND		Signal GND		Signal GND		Shield
  4	NC		NC		CAN_H		E-RXD+
  5	NC		NC		CAN_L		E-RXD-
  6	RS485-A		TXD		NC		E-TXD+
  7	RS485-B		RXD		NC		E-TXD-
