• Based on high performance SST300 inclinometer
• According to IEEE802.11b/g, Wi-Fi compatible
• Support topology & AP etc. network types
• High speed transmission and security
• 2.4G ISM band
• RF certifi cated by FCC, CE…
• Operation temperature: -40~80℃
• Radio range up to 200m
• Customized wireless sensor network (WSN), 256 nodes coverage

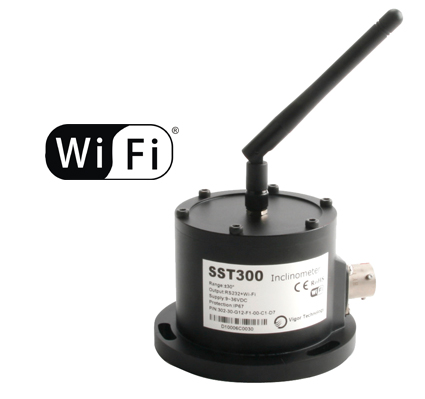

Wi-Fi inclinometer SST300 integrated with experienced wireless Sensor Network(WSN) technology& patented tilt measurement technology, suit for industrial remote tilt measurement system application where required precision tilt data, security & reliable data transmission, easy data collection & analysis.
Based on this wireless inclinometer, easy to build one WSN system with lower-cost, shorter integrating period, stable & reliable long-term running, more compatibility ability with other type sensors .
Thanks to Wi-Fi technology, this industrial wireless inclinometer can perfectly match most commercialclass terminal mobile product, to enhance owned advantages itself.These advantages are as followed:
① High-accuracy robust SST300 utilizing advanced MEMS sensor technology to ensure maximum reliability even in the harshest environment.
② Adopt mature experienced Wi-Fi technology, to ensure accurate data remote transmission.
③ iAngle TM support to various software operation platforms, such as Windows system (Microsoft), iOS (Apple), An droid (Google), no matter the device is portable, moving or not.
④ Easy to connect mobile & fi xed devices (with Wi-Fi interface) and build wireless network automatically, to realize data acquisition, storage, analysis and query.
⑤ With mobile terminal device (iPhone or iPad), surveyor & engineer can log & record data remotely while PLC system and control equipment running, especial to project monitoring, fi eld equipment installing and debugging.
⑥ Easy to add & reduce amount of sensor or terminal equipment, can realize many sensor data queried by one device and one sensor datum queried by many devices simultaneously.
⑦ Lowest-cost to realize remote tilt measurement, data storage & analysis on your hand anytime & anywhere, may mostly replace to traditional spirit-levelmeter.
⑧ Through internet, data query in other cities comes true and it enables users to diagnose and set sensor remotely.
Picture 1 Data cabling & wireless transmission in original /traditional PLC control system.
SST300 Wi-Fi inclinometer can set up network connection through IP address access and using Ad-Hoc or AP model. With Ad-Hoc network, wireless device can connect each other directly. Refer to picture 2.
With AP network, data communication between sensors & PC/intelligent terminal equipment can be realized, also uploaded to other network with router, such as GPRS, 3G and ADSL. Refer to picture 3.
Picture 2 Ad-Hoc application Picture 3 AP network application
Dimensions(Wi-Fi Antenna adjusted to upright & rotary)
Note: For analog/digital output in parallel, the sensor height will chang, please ask us for details.
Table 3 Connector definition(Only for Wi-Fi interface)
If need other digital or analog output simultaneously, please order separately. The standard output is Wi-
Fi only, for others please refer to table 5.2.
PC application software and test report please refers to Table 5.3
|Table 5.1 Accessories|
|Item||Order Code||Accessories name||Function|
|F1||GPS module||Positioning accuracy 2.5m CEP; 2.0m @ SBAS
Local gravity acceleration automatic revision
Time pulse accuracy: 30ns RMS, Original data refresh rate: 4Hz
Speed accuracy: 0.1m/s,Receiver type:GPS L1 band,C/A code;
Higher positioning accuracy GPS available
|F3||Compass module||Plane compass technology
Accuracy: <±1.0°RMS, Resolution: 0.01°
Hard-iron compensation circuit
Hgher accuracy or 3D compass module available
|F4||Gyro module||±100/250/400°/s, X/Y/Z axis dynamic angular rate
In-run bias: ±0.02°/s, Non-linearity: 0.1%FS
Bandwidth: 50Hz,Noise density：0.02°/s/√Hz
Higher accuracy gyro module available
|Cable & plug||C1||Standard Cable
|Military class connector(meet MIL-C-26482),Standard 2M
cable,IP67 protection, heavy duty up to 30kg
|C6||Standard plug||According to MIL-C-26482|
|D1||Temperature drift||Temperature compensation range 0~60℃,accuracy ±0.01°@≤±30°|
|D2||Temperature drift||Temperature compensation range 0~60℃, accuracy ±0.01°@>±30°|
|D3||Temperature drift||Temperature compensation range -20~60℃, accuracy ±0.02°@≤±30°|
|D4||Temperature drift||Temperature compensation range -20~60℃, accuracy ±0.02°@>±30°|
|D5||Temperature drift||Temperature compensation range -30~60℃, accuracy ±0.03°@≤±30°|
|D6||Temperature drift||Temperature compensation range -30~60℃, accuracy ±0.03°@>±30°|
|D7||Temperature drift||Temperature compensation range -40~65℃, accuracy ±0.05°@≤±30°|
|D8||Temperature drift||Temperature compensation range -40~65℃, accuracy ±0.05°@>±30°|
|D9||Temperature drift||Temperature compensation range-40~85℃, accuracy ±0.05°@≤±30°|
|D10||Temperature drift||Temperature compensation range -40~85℃, accuracy ±0.05°@>±30°|
|Table 4 Options|
|00||RS232 interface||Directly angle data output
Data format: ASCII, 115200 Baud (adjustable), 8 data bits,1 start bit,1 stop
bit , none parity
Refresh rate: 5Hz, optional 10Hz, 20Hz
|G1||RS485 interface||Isolated RS-485/422 transceiver, Compatible with half-duplex or full-duplex
±15kV ESD protection for RS-485/RS-422 physic pin
Compatible with ANSI/TIA/EIA-485-A-98 and ISO8482:1987(E)
Comply with UL1577—2500V rms for 1min
Transmission rate up to 500 kbps, support 256pcs max node
High common mode transient suppression ability ＞25kV/us
Support Modbus-RTU, sensor supply HEX or ASCII communication
Built-in to SST300 inclinometer
|G19||4~20mA output||Output current and Angle data in proportion precisely
Output impedance 39Ω, allow load impedance 625Ω max
Overheating and against access protection
Built-in to SST300 inclinometer
