Thermal-shock-proof Inclinometer

Description

• Product info

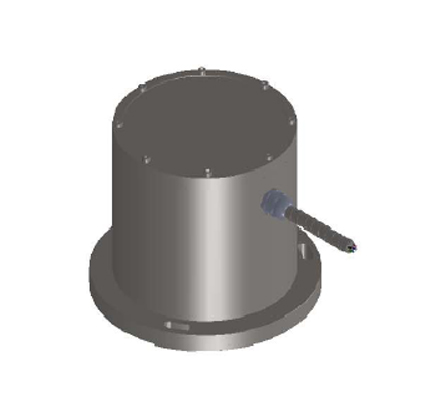

  The thermal-shock –proof inclinometer based on high performance/reliability/stability inclinometer, especially designed from shell material, connector, insulation, cable protection etc, with finite element (FEA) analysis tool, it is a professional tilt angle measuring products in highest temperature environment .

  Applications
  Electric power, chemical, metallurgy and other industries such as high-temperature region
  Metallurgical heating treatment equipment, high-temperature fluid pipeline equipment
  Missile launch vehicles, launchers, aircraft carriers and other military equipment exposed to high-temperature region

• Size & Wiring





  Table 2 RS 232 pin definition

  Cable wire color	Function
  Red	Power+
  Black	Power GND
  Green	Signal GND
  Yellow	NC
  White	NC
  Blue	RS232-TXD
  Brown	RS232-RXD



• Ordering













  For example, if order a dual axis thermal shock-proof inclinometer, with range ±15°, room temperature accuracy ±0.02°, output RS422, 2 meters cable with plug, the model should be chosen as: SST302-15-G2-00–B1-C15-00

  Table 3 Accessories

  Item	Order Code	Accessories name	Function
  Output interface	00	RS232	Directly angle output Data format: Baud rate:115200(adjustable), 8 data bits, 1 start bit, 1 stop bit, none parity Refresh rate:5Hz, optional: 10Hz, 20Hz
  	G1	RS485 output	Isolated, Compatible with half-duplex or full-duplex communication; ±15kV ESD protection Compatible with ANSI/TIA/EIA-485-A-98 & ISO8482:1987(E) Comply with UL1577—2500V rms for 1min； Transmission rate up to 500 kbps, support max 256pcs node High common mode transient suppression ability>25kV/us； Support Modbus-RTU, sensor supply HEX or ASCII communication
  	G2	RS422
  	G3	CAN	Compliance with ISO/DIS 11898, twisted-pair output Support CAN2.0A, CAN2.0B protocol Build-in high-speed photo isolators Support 15 baud rates from 5k to 1000Kbps Transmission distance: 10km Max
