In-Place Inclinometer

Description

• Product info

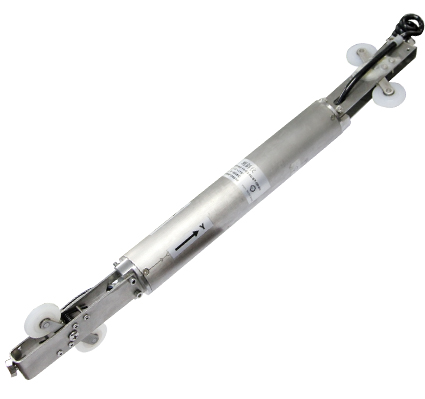

  In-Place inclinometer is based on Vigor patent tilt measurement technology and combined with CAN module, further its housing match with all civil engineering applications. It not only has high reliability & high performance, also easily connect each other with slave/master functions.
  In-place inclinometer employee with MEMS technology, more durable, high stability to ensure getting higher accurate data and repeatability.
  With high-speed optoelectronic isolation, CAN interface support ISO11898-2 standard and CAN2.0B standard protocol, baud rate can be set before delivery within 5~1000Kbps, adopt smaller frame structure (8bytes for each effective frame) with shorter transmission time, strong anti-interference ability. It supports point to point or one point to multipoint communication mode, suit for high speed data rate with longer communication distance.
  CAN interface supports acknowledge model/continuous sending mode/parameter setting mode. User can setup CAN interface and set zero point/baud rate/local gravitational value/zero calibration/vibration suppression filter coefficients/ID address/refresh rate, etc..

• Ordering







  For example: if order a In-Place sensor, with range ±10°, room temperature accuracy ±0.015°, -20~60℃ accuracy ±0.02, CAN2.0B interface , 2 meters cable, the model should be chosen as: SST302-10-G3-00-B7-00-D3

  Table 3 Accessories

  Item	Order Code	Accessories name	Function
  Output interface	G1	RS485 output	Standard industrial ModBus protocol
  	G23	-10~+10VDC output	Standard industrial level
  	G2	RS422 output	Standard industrial interface
  	G3	CAN output	Standard industrial interface
  	G9	Ethernet interface	Standard industrial TCP/IP interface
  	G19	4~20mA output	Standard industrial level
  	G21	-5~+5VDC output	Standard industrial level
  Cable/Plug	C2	Tensile reinforced shield cable	Heavy duty up to 50kg
  	C4	Armor cover cable	Increasing mechanical strength, erosion and anti-interference ability.
  Temperature drift	D1	Temperature drift	Temperature compensation range 0~60℃,accuracy ±0.01°@≤±30°
  	D2	Temperature drift	Temperature compensation range 0~60℃,accuracy ±0.01°@>±30°
  	D3	Temperature drift	Temperature compensation range -20~60℃,accuracy ±0.02°@≤±30°
  	D4	Temperature drift	Temperature compensation range -20~60℃,accuracy ±0.02°@>±30°
  	D5	Temperature drift	Temperature compensation range -30~60℃,accuracy ±0.03°@≤±30°
  	D6	Temperature drift	Temperature compensation range -30~60℃,accuracy ±0.03°@>±30°
  	D7	Temperature drift	Temperature compensation range -40~65℃,accuracy ±0.05°@≤±30°
  	D8	Temperature drift	Temperature compensation range -40~65℃,accuracy ±0.05°@>±30°
