• Vigor Technology GPS
• Output data: position, speed, PPS clock, X & Y axis tilt angle
• Level position accuracy: 2.5 m CEP, 2.0 m @ SBAS
• PPS clock accuracy: 30ns RMS
• Speed accuracy: 0.1m/s
• Tilt repeatability: ±0.0025°
• Local gravity acceleration value adjust automatically, ensure accurate zero at any place of world
• Radio:GPS L1 band, C/A code, GALILEO Open Services GLONASS FDMA;SBAS:WAAS, EGNOS, MSAS
• Available to API for Google maps

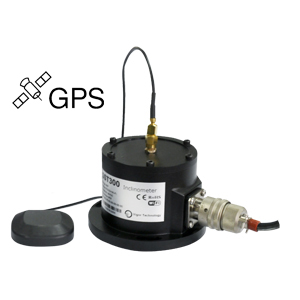

GPS inclinometer is a new attitude measurement product, creatively designed by Vigor. It combines GPS module and unique tilt measurement technology, not only provides roll & pitch angle data, but also position, time and speed information available. It meets the requirement of that, many sensors work synchronically in static situation, and positioning and synchronization in dynamic situation.
Local latitude & longitude information are provided by internal GPS module, and the inclinometer can use these to adjust the gravity acceleration value automatically, so as to ensure accurate tilt angle data. Also with the GPS information, end-user can install many sensors in proper places to realize attitude monitoring of mountain or other fields.
GPS inclinometer has added time-stamp on angle data, 30ns accuracy can meet most of data synchronization
analysis and acquisition requirements.
For mobile devices, GPS inclinometer not only provides high accurate X & Y axis angle data, but also the
latitude & longitude data, sea level elevation and moving speed data. If GPS base stations available, it will
realize 40cm positioning accuracy. For more details, please contact Shanghai Vigor.
GPS inclinometer has strong tilt measuring ability:
√ ±0.02%FS linearity
√ ±0.005°Offset and local gravity acceleration automatically compensated via GPS latitude & longitude data, realize high accuracy of zero and wide-range measurement
√ No location limit to GPS inclinometer. Synchronize to each GPS inclinometer and other equipments by GPS clock
√ Further confirmed that offset, repeatability, hysteresis, turn on repeatability etc. parameters which are important influence factors to unit total performance evaluation
√ Internal enhanced advanced intelligent algorithms drastically reduce cross-axis error. upgrade real tilt angle measuring accuracy. Abandoned the traditional incomplete understanding for tilt angle measurement accuracy concept
√ Patent error calculation and test calibration method, greatly upgrades real tilt angle measuring accuracy and reliability
√ Greatly reduce measuring errors when the real tilt direction not consistent to inclinometer sensitive axis
√ Additional to short-circuit, transient voltage, Overheat protection and transposition protection to adapt to industry environment
√ User can set parameters of inclinometer and query factory data
Agricultural & construction machinery, Trucks, Buses, Trains
Other outdoor ground mobile devices
Track inspection instrument, field geological exploration
Instruments and other operation equipment
Field synchronous test system(rely on tilt angle & PPS clock)
Vessel and other marine equipment
Geological disaster long-term monitoring system
For example, if order a dual-axis GPS inclinometer, with range ±30°, accuracy ±0.02°at room temperature and -20~60℃, CAN2.0 output, 2m cable, the model should be chosen as: SST302-30-G3-F1-00-C1-D3 (2m)
PC application software— order number SST003-04-09
Magnetic base— order number SST003-01-01
Table 3 Accessories |
Item | Order Code | Accessories name | Function |
Output interface |
00 | RS232 | Directly angle output Data format: Baud rate:115200(adjustable), 8 data bits, 1 start bit, 1 stop bit, none parity Refresh rate:5Hz, optional: 10Hz, 20Hz |
G1 | RS485 | Isolated, Compatible with half-duplex or full-duplex communication; ±15kV ESD protection Compatible with ANSI/TIA/EIA-485-A-98 & ISO8482:1987(E) Comply with UL1577—2500V rms for 1min; Transmission rate up to 500 kbps, support max 256pcs node High common mode transient suppression ability>25kV/us; Support Modbus-RTU, sensor supply HEX or ASCII communication |
|
G2 | RS422 | ||
G3 | CAN | Compliance with ISO/DIS 11898, twisted-pair output Support CAN2.0A, CAN2.0B protocol Build-in high-speed photo isolators Support 15 baud rates from 5k to 1000Kbps Transmission distance: 10km Max |
|
G12 | WiFi | WLAN protocol: IEEE 802.11b/g, Compatible with Wi-Fi, 2.4G ISM band Output power: 15dBm +/-1.5dBm Wireless data transmission rate: 802.11b:1, 2, 5.5, 11Mbps 802.11g:6, 9, 12, 18, 24, 36, 48, 54Mbps WLAN setting up:Support AP & Ad-Hoc Encryption:Support WEP40 and WEP104 encryption (64/128 bit) Set-up network time:3~6s |
|
Cable/plug | C1 | Standard Cable with plug |
Military class connector(meet MIL-C-26482),Standard 2M cable,IP67 protection, heavy duty up to 30kg |
C6 | Standard plug | According to MIL-C-26482,IP67 protection | |
Temperature drift |
D1 | Temperature drift | Temperature compensation range 0~60℃,accuracy ±0.01°@≤±30° |
D2 | Temperature drift | Temperature compensation range 0~60℃, accuracy ±0.01°@>±30° | |
D3 | Temperature drift | Temperature compensation range -20~60℃, accuracy ±0.02°@≤±30° | |
D4 | Temperature drift | Temperature compensation range -20~60℃, accuracy ±0.02°@>±30° | |
D5 | Temperature drift | Temperature compensation range -30~60℃, accuracy ±0.03°@≤±30° | |
D6 | Temperature drift | Temperature compensation range -30~60℃, accuracy ±0.03°@>±30° | |
D7 | Temperature drift | Temperature compensation range -40~65℃, accuracy ±0.05°@≤±30° | |
D8 | Temperature drift | Temperature compensation range -40~65℃, accuracy ±0.05°@>±30° | |
D9 | Temperature drift | Temperature compensation range-40~85℃, accuracy ±0.05°@≤±30° | |
D10 | Temperature drift | Temperature compensation range -40~85℃, accuracy ±0.05°@>±30° |
Table 4 Options |
Item | P/N | Option name | Function |
Installation tools |
SST003-01-01 | Magnetic base | 50kg suction, permanent magnet, stainless steel materials |
SST003-01-04 | Adjustable base with micrometer screw |
Three-points adjustment, resolution 0.001mm, stainless steel materials |
|
Indicator | SST003-04-10-01 (Based on iPhone) |
iAngle mobile software | The communication distance with inclinometer ≥200m By iPhone or iPad, can directly inspect the data, and do variety of settings, such as: zero, test range, sampling rate, filter coefficient, etc, and have more functions, including alarm, graph, compass chart, bubble chart Sampling rate: 20time/sec. |
SST003-04-10-02 (Based on iPad) |
|||
SST003-04-09 | PC application Software | Setting function, Command function, Tool function Operating platform: windows XP, Windows 7 |
|
SST003-04-12-00 | iss8 software | Collecting, preserving and monitoring data of 8pcs SST300 inclinometer max, can display each inclinometer data graph, parameters setting early warming and achieve multiple inclinometer networking Based on windows |
|
Power | SST003-09-02 | The portable rechargeable lithium battery packs |
Output 24VDC, Continuous work 24 hours,IP65, rechargeable |
