LCM550

By FUTEK

• 50000 lb
• Weight: 3.1 lbs
• Metric Threads
• Resistance to High Extraneous Loads
• Low Deflection
• 17-4 Stainless Steel Construction
• Both Tension & Compression
• Utilizes Metal Foil Strain Gauge Technology

Send me a qoutation

Description

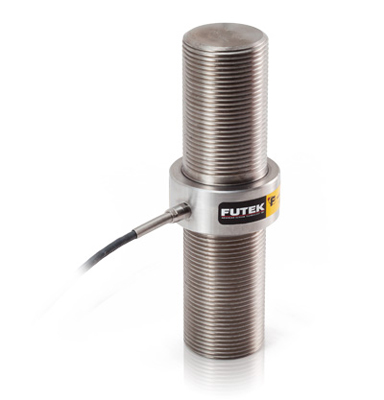

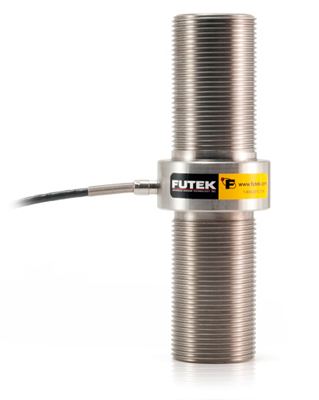

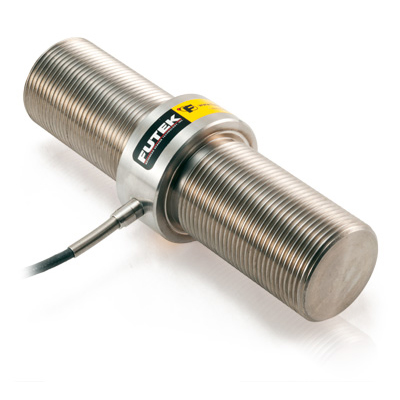

Model LCM550 is an In Line Load Cell built for Endurance, Press, or Inline applications. The standard LCM550 In Line Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 10 feet long 24 AWG 4 conductor shielded PVC cable. This product offers an exceptional design with a height of 6.0” and a diameter of 1.6”. You will also find options for external matched output and metric threads readily available. For more capacity options, please see the LCM500 or LCM525.

The In Line Load Cell offers high accuracy and high stiffness. It has Nonlinearity of ±0.2% and Deflection of 0.005” nominal. The standard LCM550 In Line Load Cell can be modified or customized to meet your requirements and most models are in our inventory making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology.


notable-overview
Notable Features
From an expansive capacity range to multiple thread options to full compatibility with FUTEK’s instrument line, this load cell series offers users versatility in finding a suitable solution per their application’s requirements.
miniature-overview
Miniature Models Available
FUTEK’s Engineering Team designed and developed the LCM Load Cell Series to include half a dozen miniature models. These six solutions offer a variety of outer diameter options and extend over a capacity range of 1000 g to 20,000 lb.
play
In-Line Videos
Watching a video usually gives you a better understanding of a product, and what better way to learn about one of our new releases than seeing it in action. So go ahead and check out our In-Line Load Cell video page for demonstrations and features on the new LCM100 model.

Learn More >

Product Highlights:

  • Weight: 3.1 lbs
  • Metric Threads
  • Resistance to High Extraneous Loads
  • Low Deflection
  • 17-4 Stainless Steel Construction
  • Both Tension & Compression
  • Utilizes Metal Foil Strain Gauge Technology

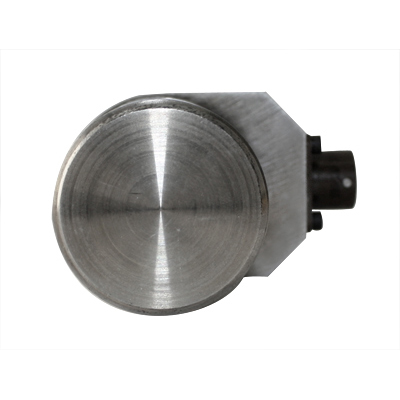

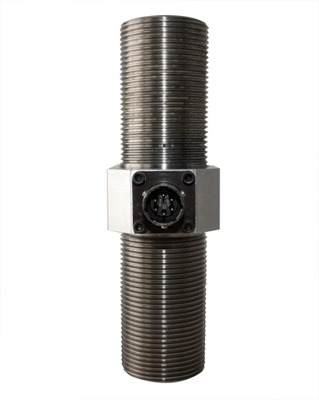

  • FSH01957 – Capacity: 50000 lbs – 1 1/2-12-Thread – 6 Pin Bendix Receptacle

    LCM550 , 50000 lb , Threaded Rod Load Cell , Material – 17-4 PH S.S. , 1 1/2-12-Thread , TEDS (IEEE1451.4) Recognition , 6 Pin Bendix Receptacle, PT02A-10-6P w/ Auto Recognition Chip

    DIMENSION VALUE
     Height (in)  6
     Length (in)  6
     Weight (lbs)  3.1
     Dia (in)  1.98



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.2  0.2  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.2  0.2  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -45  200  F
     Output Resistance  350  Ohms nom.
     Output Symmetry  -5  5  % of R.O.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  50000  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc



  • FSH02295 – Capacity: 50000 lbs – 1 1/2-12-Thread -Shielded PVC Cable

    LCM550 , 50000 lb , Threaded Rod Load Cell , Standard , Material – 17-4 PH S.S. , 1 1/2-12-Thread , 24 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long

    DIMENSION VALUE
     Height (in)  6
     Weight (lbs)  3.1
     Dia (in)  1.98



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.2  0.2  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.2  0.2  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -45  200  F
     Output Resistance  350  Ohms nom.
     Output Symmetry  -5  5  % of R.O.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  50000  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc



  • FSH02296 – Capacity: 50000 lbs – M36x4-Thread -Shielded PVC Cable

    LCM550 , 50000 lb , Threaded Rod Load Cell , Standard , Material – 17-4 PH S.S. , M36x4-Thread , 24 Awg 4 Conductor Braided Shielded PVC Cable , 10 ft Long

    DIMENSION VALUE
     Height (in)  6
     Weight (lbs)  3.1
     Weight (oz)  50
     Dia (in)  1.98



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.2  0.2  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.2  0.2  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -45  200  F
     Output Resistance  350  Ohms nom.
     Output Symmetry  -5  5  % of R.O.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  50000  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH03779 – Capacity: 50000 lbs – M36x4-Thread – 6 Pin Bendix Receptacle

    LCM550 , 50000 lb , Threaded Rod Load Cell , Material – 17-4 PH S.S. , M36x4-Thread , TEDS (IEEE1451.4) Recognition , 6 Pin Bendix Receptacle, PT02E-10-6P w/ Auto Recognition Chip
