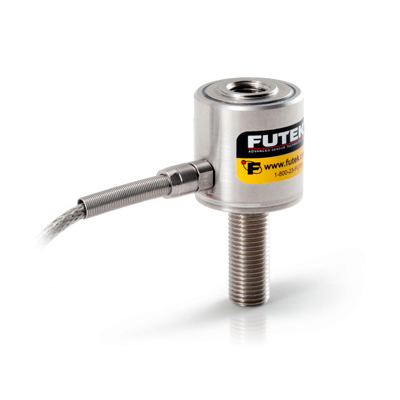

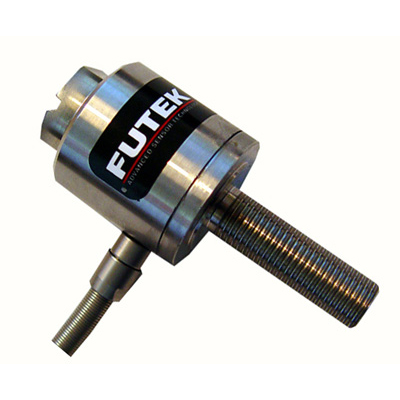

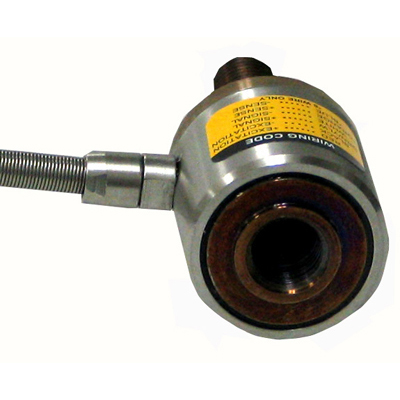

LCB200

By FUTEK

• Light Weight
• External matched output option available
• Fatigue Rating Available
• Teflon Cable Option
• Female/Male Threads
• Low Deflection
• 17-4 Stainless Steel Construction
• In both Tension & Compression
• Mid Range Capacity Applications
• Utilizes Metal Foil Strain Gauge Technology

Send me a qoutation

Description

Model LCB200 is a Rod End Load Cell (Tension/Compression) designed for applications involving Inline Actuators or Hydraulic Jacks with Male/Female Threads. The standard LCB200 Rod End Load Cell (Tension/Compression) model has male/female threads, built from robust 17-4PH Stainless Steel, and weighs approximately 3.5 oz. This model is well suited for the mid range capacity requirements (1,000 lb – 3,000 lb) offering high endurance and excellent accuracy.

This Rod End Load Cell (Tension/Compression) has high accuracy and high stiffness. It has Nonlinearity of ±0.5%, Bridge Resistance of 1000 ohms, and Deflection of 0.001” nominal. The standard LCB200 Rod End Load Cell (Tension/Compression) can be modified or customized to meet your requirements, and most capacities are in our inventory, making them available for 24 hour shipping. Similar to Futek´s entire Load Cell product line this model is manufactured in US, and uses metal foil strain gauge technology.

Product Highlights:

  • Light Weight
  • External matched output option available
  • Fatigue Rating Available
  • Teflon Cable Option
  • Female/Male Threads
  • Low Deflection
  • 17-4 Stainless Steel Construction
  • In both Tension & Compression
  • Mid Range Capacity Applications
  • Utilizes Metal Foil Strain Gauge Technology




  • FSH00678 – Capacity: 2000 lbs

    LCB200 , 2000 lb , Tension & Compression Load Cell , Material – 17-4 PH S.S. , 3/8-24-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

    DIMENSION VALUE
     Height (in)  2
     Weight (oz)  3.5
     Dia (in)  0.96



    NAME MIN TYP MAX UNIT
    CHANNEL 1
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.5  0.5  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.5  0.5  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -45  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.01  0.01  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  2000  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH03718 – Capacity: 1000 lbs

    LCB200 , 1000 lb , Tension & Compression Load Cell , Material – 17-4 PH S.S. , 3/8-24-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

    DIMENSION VALUE
     Height (in)  2
     Weight (oz)  3.5
     Dia (in)  0.96



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.5  0.5  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 250 Vdc
     Nonlinearity  -0.5  0.5  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -45  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.01  0.01  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  1000  lbs
     Rated Output  1  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH04014 – Capacity: 3000 lbs

    LCB200 , 3000 lb , Tension & Compression Load Cell , RoHS Compliant , Material – 17-4 PH S.S. , 3/8-24-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.5  0.5  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 250 Vdc
     Nonlinearity  -0.5  0.5  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -45  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.01  0.01  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  3000  lbs
     Rated Output  3  mV/V nom.
     Calibration Excitation  10  Vdc
  • QSH01236 – Capacity: 2000 lbs

    LCB200 (L1652), 2000 lb, Tension & Compression Load Cell, Welded Construction, Material – 17-4 PH S.S. , 3/8-24-Thread , Water Resistant , 28 Awg 4 Conductor Braided Shielded Clear PVC – 10 ft Long

    DIMENSION VALUE
     Weight (oz)  3.5
     Dia (in)  0.96



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.5  0.5  Vdc
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.5  0.5  % of R.O.
     Nonrepeatability  -0.1  0.1  % of R.O.
     Operating Temperature  -45  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  150  % of R.O.
     Temperature Shift Span  -0.01  0.01  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  2000  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
