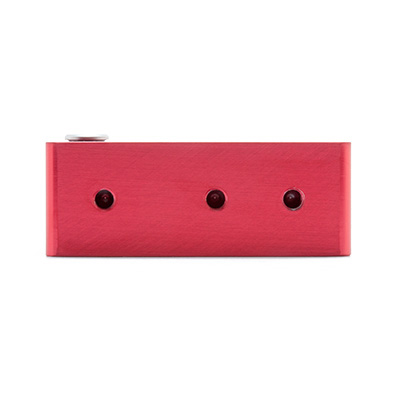

LRF400

By FUTEK

• Low Deflection
• 2024 Aluminum Construction
• Built In Overload Protection
• In both Tension & Compression
• 0.25 lb – 100 lb capacity range
• Utilizes Metal Foil Strain Gauge Technology
• Weight: 5 oz

Send me a qoutation

Description

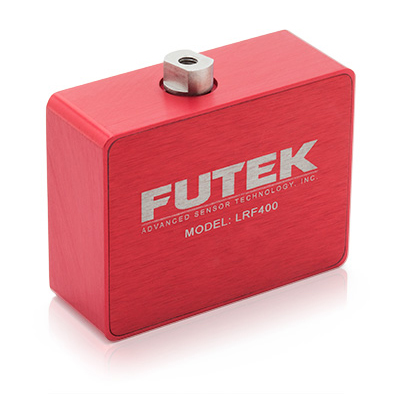

The LRF400 Tension and Compression Load Cell offers a compact design ideal for low capacity applications. With a height of only 2.25”, the LRF400 Tension and Compression Load Cell is a great selection for tight spaces. The Standard LRF400 Tension and Compression Load Cell model has female/female threads, 2024 Aluminum construction (10 gram – 100 lb), and a Lemo Receptacle.

With all of its design features the Tension and Compression Load Cell has a high accuracy with a Nonlinearity of ±0.05%, deflection of 0.003” to 0.0011” nominal and an operating temperature of -60° F to 200° F. This Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.

  • FSH00259 – Capacity: 0.25 lb

    LRF400 , 0.25 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  50  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  0.25  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00260 – Capacity: 0.5 lb

    LRF400 , 0.5 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  50  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  0.5  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00261 – Capacity: 1 lb

    LRF400 , 1 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  50  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  1  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00262 – Capacity: 2,2 lb

    LRF400 , 2.2 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  250  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  2.2  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00263 – Capacity: 5 lb

    LRF400 , 5 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  250  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  5  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00264 – Capacity: 10 lb

    LRF400 , 10 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  250  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -1  1  % of R.O.
     Capacity  10  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00265 – Capacity: 25 lb

    LRF400 , 25 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  250  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -1  1  % of R.O.
     Capacity  25  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00266 – Capacity: 50 lb

    LRF400 , 50 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL

    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  250  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -1  1  % of R.O.
     Capacity  50  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
  • FSH00267 – Capacity: 100 lb

    LRF400 , 100 lb , Tension & Compression , Standard , Material – 2024-T4 , #10-32-Thread , Overload Protection , 4 Pin Lemo Receptacle, EGG.0B.304.CLL
    DIMENSION VALUE
     Width (in)  0.96
     Height (in)  2.58
     Length (in)  2.27



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  18  Vdc
     Hysteresis  -0.05  0.05  % of R.O.
     Input Resistance  1120  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.05  0.05  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  200  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  250  lbs
     Temperature Shift Span  -0.005  0.005  % of Load/F
     Temperature Shift Zero  -0.005  0.005  % of R.O./F
     Zero Balance  -1  1  % of R.O.
     Capacity  100  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  10  Vdc
