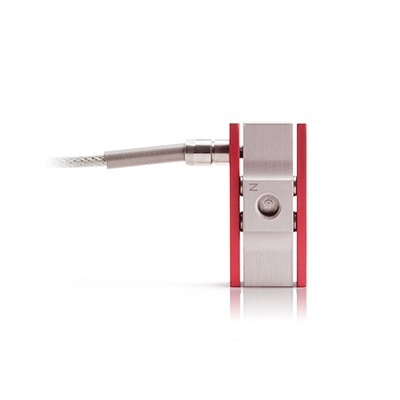

LRF325

By FUTEK

• Light Weight
• Low Deflection
• 2024 Aluminum Construction
• In both Tension & Compression
• Low capacity applications
• Utilizes Metal Foil Strain Gauge Technology
• Weighs only 1.8 oz

Send me a qoutation

Description

Product Description

The Inline Low Profile Tension & Compression Load Cell offers a compact design for inline loading applications. With a height of only 0.75”, the LRF325 Low Profile Tension & Compression Load Cell is a great selection where tight environments or space is a challenge. The Standard LRF325 Low Profile Tension & Compression Load Cell model has female/female threads, 2024 Aluminum construction, with the choice of a 10 feet 4 conductor shielded PVC cable (28 AWG) or Strain Relief. It is well suited for low capacity requirements (25 – 100 lb) and for any applications that require a higher capacity range, please refer to the LRF350.

With all of its design features the Low Profile Tension & Compression Load Cell has a high accuracy with a Nonlinearity of ±0.1%, deflection of 0.004” nominal and an operating temperature of -60° F to 200° F. This Load Cell can be modified or customized to meet your requirements and most capacites are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in the US and uses metal foil strain gauge technology.

Product Highlights:

  • Light Weight
  • Low Deflection
  • 2024 Aluminum Construction
  • In both Tension & Compression
  • Low capacity applications
  • Utilizes Metal Foil Strain Gauge Technology
  • Weighs only 1.8 oz




LRF325 , 75 lb , Low Profile Tension & Compression , Standard , Material – 2024-T4 , 1/4-28-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

DIMENSION VALUE
 Width (in)  0.7
 Height (in)  0.75
 Length (in)  1.61
 Weight (oz)  1.8



NAME MIN TYP MAX UNIT
 Compensated Temperature  60  160  F
 Excitation  1  15  Vdc
 Hysteresis  -0.1  0.1  % of R.O.
 Input Resistance  394  Ohms nom.
 Insulation Resistance  500  Mohms @ 50 Vdc
 Nonlinearity  -0.1  0.1  % of R.O.
 Nonrepeatability  -0.05  0.05  % of R.O.
 Operating Temperature  -45  200  F
 Output Resistance  350  Ohms nom.
 Safe Overload  150  % of R.O.
 Temperature Shift Span  -0.005  0.005  % of Load/F
 Temperature Shift Zero  -0.005  0.005  % of R.O./F
 Zero Balance  -1  1  % of R.O.
 Capacity  75  lbs
 Rated Output  2  mV/V nom.
 Calibration Excitation  10  Vdc
