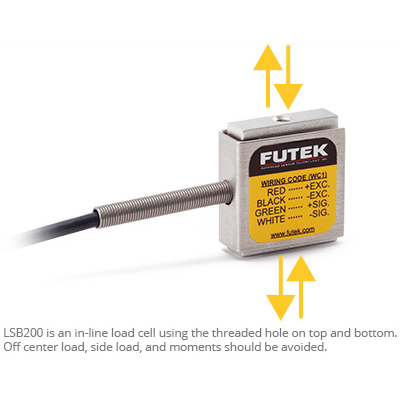

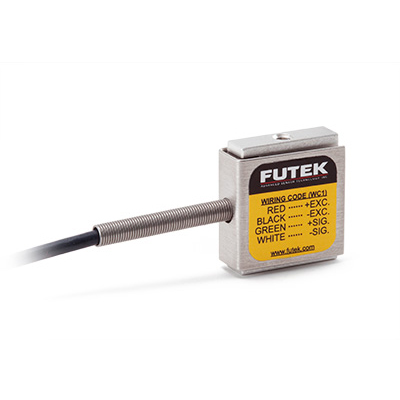

LSB200

By FUTEK

• LSB200
• FUTEK’s No Risk Lifetime Warranty
• JR S-Beam Load Cell
• Overload Protection
• Available in a wide range of capacities and threads

Send me a qoutation

Description

The Miniature S Beam Load Cell LSB200 is now offered with FUTEK’s No Risk Lifetime Warranty due to its dynamic functionalities and miniature size. This Miniature S-Beam Load Cell has become one of the signature products in the FUTEK Load Cell Series and is capable of servicing numerous applications and is used industry wide. One industry the LSB200 is often used in is the Medical Industry where it has been commonly used in Medical Bag Weighing Applications as well as automated feedback control and inline processing applications. This product offers a perfect mixture of size, accuracy and the assurance of an overload protection feature making this one of our most sought after models. With a height of only 0.75”, the LSB200 Miniature S Beam Load Cell is a great selection where tight environments or space is a challenge. LSB200 S-Beam Jr. Load Cell is also available with a brand new USB Digital Interface with 16 bits resolution. PLEASE NOTE, THE USB DIGITAL INTERFACE/KIT MUST BE ADDED ON DURING THE PRODUCT CONFIGURATION.


compatibility-overview

Full Compatibility

FUTEK designed the LSB200 Miniature S-Beam Jr. Load Cell to work alongside bench top displays, handheld displays, and USB Solutions. Compatible for FUTEK’s entire instrument line, the LSB200 has the capability to measure results down to the microgram.

warranty-overview

Lifetime Warranty

FUTEK offers a lifetime warranty with the LSB200 against manufacturing defects. The engineers of FUTEK provide this service to guarantee our customs peace of mind and assurance that our miniature load cell solution will work within your application’s requirements.

109

Applications

With over a decade of manufacturing experience on the LSB200, FUTEK has seen this miniature load cell utilized in industry applications like medical testing, pharmaceutical research, aerospace safety analysis, robotics and automation, and process control.




  • FSH00091 – Capacity: 1 lbs – #4-40-Thread

    LSB200 , 1 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”

    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  1  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm



    This product is available with a different cable length

    Model Lenght
     FSH01559  10 ft



  • FSH00092 – Capacity: 2 lbs – #4-40-Thread

    LSB200 , 2 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long,”No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  2  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm



  • FSH00093 – Capacity: 5 lbs – #4-40-Thread

    LSB200 , 5 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  5  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00095 – Capacity: 10 lbs – #4-40-Thread

    LSB200 , 10 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long,”No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  10  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm



    This product is available with a different cable length

    Model Lenght
     FSH01888  10 ft
  • FSH00096 – Capacity: 25 lbs – #4-40-Thread

    LSB200 , 25 lb , JR S-Beam Load Cell , Standard , Material – 17-4 PH S.S. , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.9



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  25  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm



    This product is available with a different cable length

    Model Lenght
     FSH02424  10 ft
  • FSH00097 – Capacity: 50 lbs – #4-40-Thread

    LSB200 , 50 lb , JR S-Beam Load Cell , Standard , Material – 17-4 PH S.S. , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.9



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  50  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00098 – Capacity: 100 lbs – #4-40-Thread

    LSB200 , 100 lb , JR S-Beam Load Cell , Standard , Material – 17-4 PH S.S. , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.9



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  100  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00101 – Capacity: 1 lbs – M3x0.5-Thread

    LSB200 , 1 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  1  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00102 – Capacity: 2 lbs – M3x0.5-Thread

    LSB200 , 2 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty

    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  2  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00103 – Capacity: 5 lbs – M3x0.5-Thread

    LSB200 , 5 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”





    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  5  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00104 – Capacity: 10 lbs – M3x0.5-Thread

    LSB200 , 10 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  10  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00105 – Capacity: 25 lbs – M3x0.5-Thread

    LSB200 , 25 lb , JR S-Beam Load Cell , Standard , Material – 17-4 PH S.S. , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.9



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  25  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00106 – Capacity: 50 lbs – M3x0.5-Thread

    LSB200 , 50 lb , JR S-Beam Load Cell , Standard , Material – 17-4 PH S.S. , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.9



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  50  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH00107 – Capacity: 100 lbs – M3x0.5-Thread

    LSB200 , 100 lb , JR S-Beam Load Cell , Standard , Material – 17-4 PH S.S. , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.9



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  100  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH02235 – Capacity: 5 lbs – M3x0.5-Thread

    LSB200 , 5 lb , JR S-Beam Load Cell , Standard , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  5  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH02319 – Capacity: 10 g – M3x0.5-Thread

    LSB200 , 10 g , JR S-Beam Load Cell , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.02  0.02  % of R.O./F
     Zero Balance  -5  5  % of R.O.
     Capacity  10  Gram
     Rated Output  0.5  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  301  kOhm
  • FSH02534 – Capacity: 10 g – #4-40-Thread

    LSB200 , 10 g , JR S-Beam Load Cell , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -5  5  % of R.O.
     Capacity  10  Gram
     Rated Output  0.5  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  301  kOhm



  • FSH02535 – Capacity: 50 g – #4-40-Thread

    LSB200 , 50 g , JR S-Beam Load Cell , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  5  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  50  Gram
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  150  kOhm
  • FSH02536 – Capacity: 100 g – #4-40-Thread

    LSB200 , 100 g , JR S-Beam Load Cell , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  100  Gram
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  150  kOhm
  • FSH02602 – Capacity: 250 g – #4-40-Thread

    LSB200 , 250 g , JR S-Beam Load Cell , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  250  Gram
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  150  kOhm



  • FSH02663 – Capacity: 50 g – M3x0.5-Thread

    LSB200 , 50 g , JR S-Beam Load Cell , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  50  Gram
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  150  kOhm
  • FSH02664 – Capacity: 100 g – M3x0.5-Thread

    LSB200 , 100 g , JR S-Beam Load Cell , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  100  Gram
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  150  kOhm
  • FSH02665 – Capacity: 250 g – M3x0.5-Thread

    LSB200 , 250 g , JR S-Beam Load Cell , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  250  Gram
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  150  kOhm



  • FSH02666 – Capacity: 20 g – #4-40-Thread

    LSB200 , 20 g , JR S-Beam Load Cell , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  20  Gram
     Rated Output  1  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  301  kOhm
  • FSH02667 – Capacity: 20 g – M3x0.5-Thread

    LSB200 , 20 g , JR S-Beam Load Cell , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  20  Gram
     Rated Output  1  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  301  kOhm
  • FSH03004 – Capacity: 100 g – M3x0.5-Thread

    LSB200 , 100 g , JR S-Beam Load Cell , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  1000  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.5  0.5  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  1000  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  100  Gram
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  150  kOhm
  • FSH03099 – Capacity: 100 lb – M3x0.5-Thread

    LSB200 , 100 lb , JR S-Beam Load Cell , Material – 17-4 PH S.S. , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10 ft Long, “No Risk Life Time Warranty”



    DIMENSION VALUE
     Width (in)  0.27
     Height (in)  0.75
     Length (in)  0.69
     Weight (oz)  0.9



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  100  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • FSH03872 – Capacity: 1 lb – M3x0.5-Thread

    LSB200 , 1 lb , JR S-Beam Load Cell , RoHS Compliant , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long, “No Risk Life Time Warranty”



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  1  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • QSH01562 – Capacity: 10 lb – #4-40-Thread

    LSB200 , 10 lb , JR S-Beam Load Cell , Material – 2024-T4 , #4-40-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 10″ Long mated to 5 position Molex Connector (P/N 0050579405)



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  10  lbs
     Rated Output  2  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • QSH01746 – Capacity: 5 lb – M3x0.5-Thread

    LSB200 , 5 lb , JR S-Beam Load Cell , No Spring Strain Relief or Cover , RoHS Lead Free , Material – 2024-T4 , M3x0.5-Thread , Overload Protection , 26 Awg 4 Conductor Spiral Teflon Cable , 8 in Long



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis(  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  0  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  5  lbs
     Rated Output  1.5  2.25  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • QSH01809 – Capacity: 50 kg – M3x0.5-Thread

    LSB200 , 50 kg , JR S-Beam Load Cell , Material – 17-4 PH S.S. , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long

    DIMENSION VALUE
     Weight (oz)  0.9





    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  125  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -3  3  % of R.O.
     Capacity  50  kg
     Rated Output  2.25  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  60.4  kOhm
  • QSH01810 – Capacity: 5 kg – M3x0.5-Thread

    LSB200 , 5 kg , JR S-Beam Load Cell , Material – 17-4 PH S.S. , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long

    DIMENSION VALUE
     Weight (oz)  0.3



    NAME MIN TYP MAX UNIT
     Compensated Temperature  60  160  F
     Excitation  1  10  Vdc
     Hysteresis  -0.1  0.1  % of R.O.
     Input Resistance  350  Ohms nom.
     Insulation Resistance  500  Mohms @ 50 Vdc
     Nonlinearity  -0.1  0.1  % of R.O.
     Nonrepeatability  -0.05  0.05  % of R.O.
     Operating Temperature  -60  160  F
     Output Resistance  350  Ohms nom.
     Safe Overload  1000  % of R.O.
     Temperature Shift Span  -0.02  0.02  % of Load/F
     Temperature Shift Zero  -0.01  0.01  % of R.O./F
     Zero Balance  -6  6  % of R.O.
     Capacity  5  kg
     Rated Output  0.8  mV/V nom.
     Calibration Excitation  5  Vdc
     Shunt Calibration  100  kOhm

Downloads

Databook Pdf
3D Model Download
