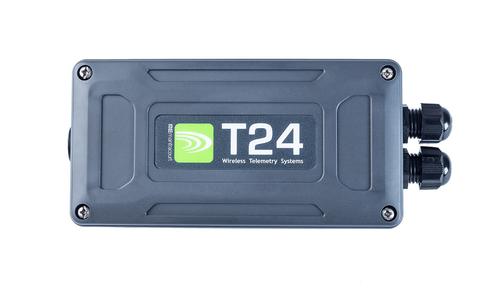

T24-BSi

By Mantracourt

• Mantracourt
• Base station with USB, RS232 & RS485interfaces up to 1000 m cable for optimum
wireless coverage
• Collects data from and configures any T24 radio telemetry module using wireless
• Wide range power supply
• Wireless range of up to 800 m (2,600 ft)
• Integral antenna
• Waterproof to IP67

Send me a qoutation

Description

The industrial wireless telemetry base station T24-BSi can be used for the configuration of all of the T24 modules whcih is greatly simplified by the T24 Toolkit software for Windows & supplied free of charge. Data can also be captured by the wireless base station from an unlimited number of T24 transmitter modules & streamed to a PC to function as a radio telemetry data logger.

The options of USB, RS232 or RS485 interfaces enables this wireless telemetry base station to connect to a wide range of devices such as PCs, PLCs, OEM hardware etc. The internal PCB antenna provides up to 800 m (2,600 ft) range.

For software developers a standard Windows DLL and COM driver are available to enable data collection from T24 transmitter modules.

The licence free 2.4 GHz direct sequence spread spectrum (DSSS) radio telemetry technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. ETSI, FCC and IC approvals.
