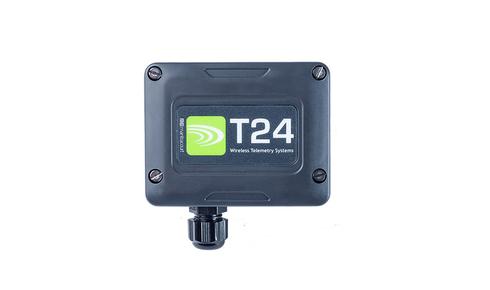

T24-ACMi

By Mantracourt

• Mantracourt
• Wireless range up to 800 m (1,600 ft)
• Internal batteries (2 x AA)
• Waterproof to IP67 enclosure 80 x 62 x 34 mm
• Exceptionally low power for long battery life (up to 5 years)
• Remote power 'on' and 'off'
• Easy connectivity with screw terminals for connection to a variety of sensors
• High speed - up to 200 updates per second
• High Resolution up to 1 part in 400,000 (18bit)

Send me a qoutation

Description

The wireless sensor transmitter enclosure offers high performance wireless sensing measurement for strain gauge, current or voltage input sensors.
Using Mantracourt’s proprietary 2.4 GHz wireless telemetry electronics, the wireless sensor transmitter module provides exceptional performance in the field with a battery life of up to 5 years, by ‘powering down’ between transmissions or ‘powering off’ completely.

Green_Sensor_Symbols-horizontal-web

The T24-ACMi is powered by a pair of alkaline ‘AA’ cells and is environmentally sealed to IP65 NEMA 4.
The high accuracy, low noise measurement electronics deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates of up to 200 per second to other wireless sensing T24 devices such as handheld displays, analogue outputs and base stations etc.

The wireless sensor transmitter module is configured and calibrated (either by applying known inputs or by table entry) using free T24 Toolkit software which runs on a PC connected to a T24 base station.

The module offers a wireless range of up to 800 m (2,600 ft) in open field site.

Alternative IP rated enclosures are available to suit a range of applications and environments.The license free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.
