T24-ACM

By Mantracourt

• Mantracourt
• Wireless range up to 800 m (2,600 ft)
• Internal batteries (2 x D) or external power
• Waterproof to IP67
• Easy connectivity to sensor
• Exceptionally low power for long battery life (up to 5 years)
• Remote power 'on' and 'off'

Send me a qoutation

Description

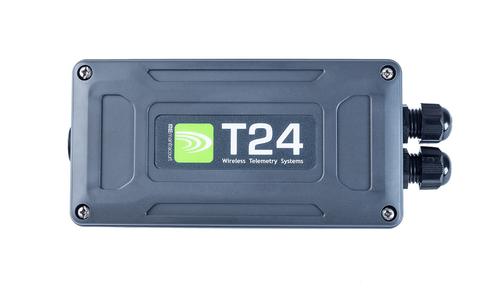

The largest of the T24 wireless transmitter enclosures, the T24-ACM offers high performance wireless sensor transmitter measurement for strain gauge, current, voltage, temperature, pulse and potentiometer.Using Mantracourt’s proprietary 2.4 Ghz wireless telemetry electronics, this system provides exceptional performance in the field with a battery life of up to 5 years, by ‘powering down’ between transmissions or ‘powering off’ completely.

Green_Sensor_Symbols-horizontal-web

Featuring a compartment for a pair of alkaline ‘D’ cells, the T24-ACM also has a regulator circuitry for an external power supply. The batteries can also be used to provide power in case of external supply failure. For easy wireless sensing, the unit provides connections via the 2 part screw terminals and provide environmental sealing to IP67.

The T24-ACM high accuracy, low noise measurement electronics deliver high resolution, low drift results which can be user calibrated over 9 points to enable linearization and to deliver results in user definable engineering units. The results can be transmitted at rates of up to 200 per second to other wireless sensing T24 devices such as handheld displays, analogue outputs and base stations etc.
The license free 2.4GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.
