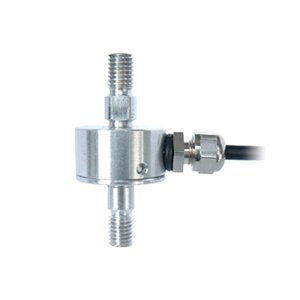

K-1107

By Lorenz Messtechnik

• Lorenz Messtechnik
• Measuring range 10 ... 200 N
• Very small geometry
• Easy assembly
• Level of protection IP63

Send me a qoutation

Description

Miniature Sensor, e.g. for Survey of Rope Force or Force Determination of a Bowden Wire

Our tension force sensors are extremely compact, but yet in a very robust design. The force is gen­er­ally applied through external threads (also available with rod ends) or by means of connecting straps. The sensors provide standardized analog, unreinforced strain gauge bridge output signals in mV/V. As an option, some of our tension force sensors can be supplied with an extended temper­a­ture range of -40°C up to 150°C. Typical applications for these sensor types are for example, rope or spring force measurement, examination of operating forces, determi­na­tion of force in belt ten­sion­ers or bowden cables, … .

The K-1107 is available in several different ranges. Accuracy class 0,2%. See Spec sheet below for additional details and dimensions.
