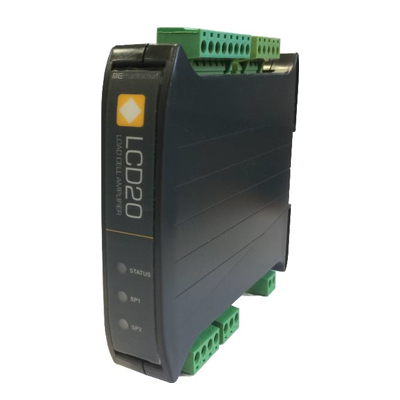

Load Cell DIN Rail Signal Amplifier (LCD20)

By Mantracourt

• Mantracourt LCD20
• Intelligent, compact, stackable microprocessor for smarter automation and process control
• Fully isolated standard analogue outputs 4-20mA and 0-10V
• Full digital setup & easy programming via handheld unit or USB connection to a PC using intuitive toolkit • software.
• Increase reliability with 2 single pole relays & digital inputs
• 10 point linearization, providing superior accuracy
• 6 wire load cell connection to compensate for barrier and cable losses
• Lockable features prevents loss of device settings through user misuse
• Configuration can be save and restored for security of setup

Send me a qoutation

Description

Our intelligent strain gauge bridge amplifier is a compact, stackable microprocessor based unit specifically designed to control and monitor process applications. Flexible connection to most load cells, pressure or strain gauges over a wide range of sensitivities. The unit provides isolated current 4-20mA and voltage 0-10V analogue outputs and two digital inputs. Two set point relays can be configured to set thresholds such as net, gross, peak and valley. Powered from a wide ranging DC supply, the DIN rail amplifier is supplied with 2 part screw connectors for ease of installation.

Suitable for strain gauges and other ratio-metric sensors and will support 6 wire input to compensate for barrier and cable losses. Factory calibrated to mV/V and supporting 10 point user calibration to desired engineering units. Configuration options via handheld programmer or PC Toolkit software.

The analogue outputs and relays interface to existing acquisition and control systems making this unit an ideal partner for any integrated instrumentation system.
